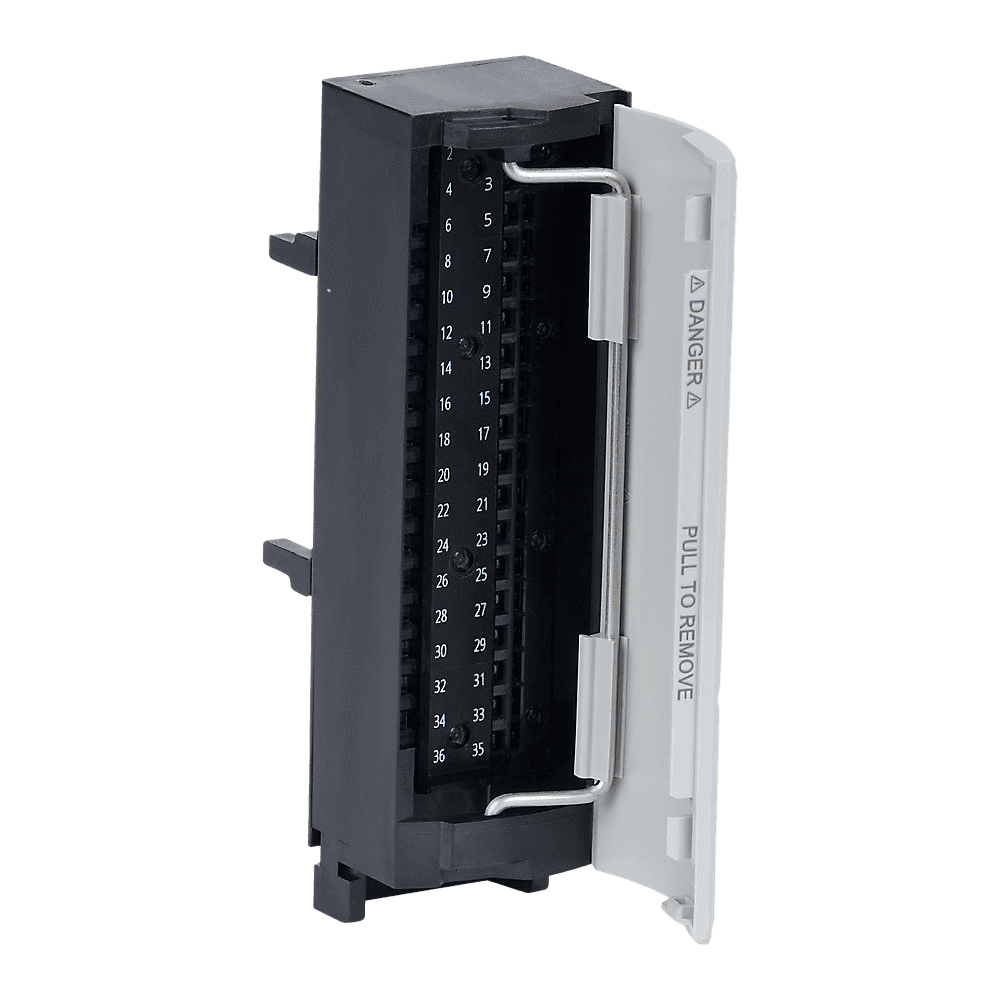

1756-TBS6H | removable terminal block; termination technology: Spring clamp; wire size: 0.33…2.1 mm² (22…14 AWG), solid or stranded copper; insulation thickness, maximum: 1.2 mm

Typical applications

• Use 1756-TBS6H in control-cabinet field wiring when the design calls for termination technology: Spring clamp.
• Choose 1756-TBS6H for control-cabinet field wiring that must provide wire size: 0.33…2.1 mm² (22…14 AWG), solid or stranded copper.
• Before ordering 1756-TBS6H, verify conductor temperature rating, minimum: ≥ 105 °C against the control-cabinet field wiring design.

Key specifications

Product type

removable terminal block

Wire size

0.33…2.1 mm² (22…14 AWG), solid or stranded copper

Conductor temperature rating, minimum

≥ 105 °C

Insulation thickness, maximum

1.2 mm

Maximum conductors per terminal

1

Number of pins

36
