Beckhoff Automation GmbH & Co. KG

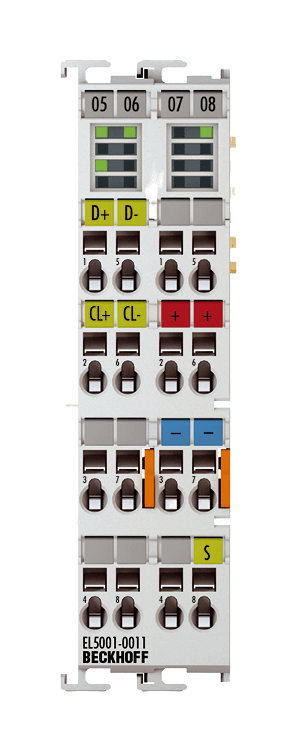

EL5001-0011 | encoder interface terminal; technology: SSI monitor interface; number of channels: 1; network protocol: EtherCAT
Manufacturer part number: EL5001-0011ESYS SKU: EL5001-0011
Net unit price, VAT 0%
€222.00
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Beckhoff Automation GmbH & Co. KG EL5001-0011 is an encoder interface terminal. Key selection facts are technology: SSI monitor interface; number of channels: 1; network protocol: EtherCAT.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use EL5001-0011 in the documented equipment configuration when the design calls for technology: SSI monitor interface.
- Choose EL5001-0011 for the documented equipment configuration that must provide number of channels: 1.
- Before ordering EL5001-0011, verify network protocol: EtherCAT against the the documented equipment configuration design.
Key specifications
- Product type
- encoder interface terminal
- Technology
- SSI monitor interface
- Number of channels
- 1
- Encoder connection
- D+, D-, Cl+, Cl-
- Encoder operating voltage
- 24 V DC (generated from the power contacts)
- Distributed clocks
- yes
Show additional verified specifications
- Signal output (pulse)
- difference signal (RS422)
- Signal input (data)
- difference signal (RS422)
- Power supply
- 24 V DC via power contacts
- Network protocol
- EtherCAT
- Transmission rate
- variable up to 1 MHz, 250 kHz default
- System family
- EtherCAT Terminal, 1-channel encoder interface, SSI, monitor
Lifecycle
- Status
- Active
Compatibility and related parts
EtherCAT Terminal, 1-channel encoder interface, SSI, monitor
Product series: Documented manufacturer system or product-family context; does not imply interchangeability with every member
