Beckhoff Automation GmbH & Co. KG

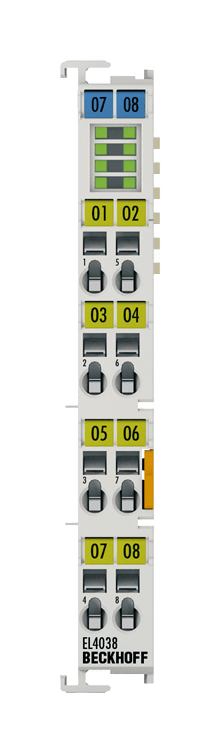

EL4038 | analog output module; number of outputs: 8; signal voltage: -10…+10 V; resolution: 12 bit
Manufacturer part number: EL4038ESYS SKU: EL4038
Net unit price, VAT 0%
€229.20
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Beckhoff Automation GmbH & Co. KG EL4038 is an analog output module. Key selection facts are number of outputs: 8; signal voltage: -10…+10 V; resolution: 12 bit.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use EL4038 in analog actuator and reference-signal channels when the design calls for number of outputs: 8.
- Choose EL4038 for analog actuator and reference-signal channels that must provide signal voltage: -10…+10 V.
- Before ordering EL4038, verify resolution: 12 bit against the analog actuator and reference-signal channels design.
Key specifications
- Product type
- analog output module
- Number of outputs
- 8
- Power supply
- 24 V DC via power contacts
- Signal voltage
- -10…+10 V
- Distributed clocks
- yes
- Distributed clock accuracy
- << 1 µs
Show additional verified specifications
- Load
- > 5 kΩ (short-circuit proof)
- Resolution
- 12 bit
- Output error
- < 0.1% (relative to end value)
- Electrical isolation
- 500 V (E-bus/signal voltage)
- Network protocol
- EtherCAT
- I/O direction
- Output
Lifecycle
- Status
- Active
Compatibility and related parts
EtherCAT Terminal, 8-channel analog output, voltage, ±10 V, 12 bit
Product series: Documented manufacturer system or product-family context; does not imply interchangeability with every member
