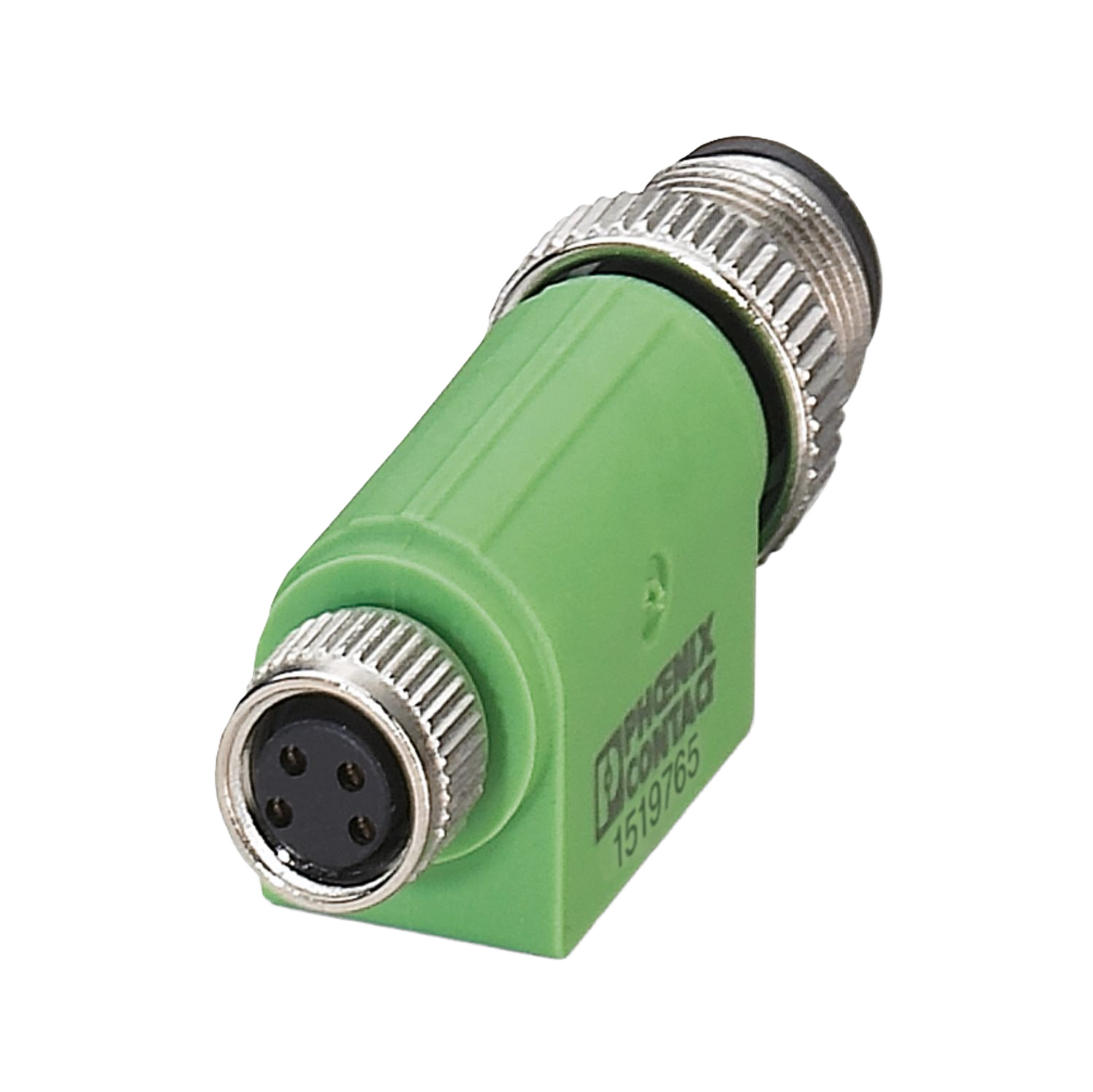

Phoenix Contact 1519765 SAC-4P-M12MS-M 8FS M12/M8 adapter
Manufacturer part number: 1519765ESYS SKU: 1519765
Net unit price, VAT 0%
€12.80
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 3 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:35
SAC-4P-M12MS-M 8FS is a four-position straight adapter from an A-coded M12 plug to an A-coded M8 socket. It is rated for 4 A and 30 V AC/DC and carries IP65 and IP67 protection.
pcs
Information for product selection
Typical applications
- Adapting an M12 sensor cable to an M8 device connection
- Size conversion of a four-position A-coded connection
- Replacement adapter for a machine sensor or actuator connection
Key specifications
- Component type
- M8/M12 adapter
- Position count
- 4
- Connection 1
- Straight M12 plug
- Connection 2
- Straight M8 socket
- Coding
- A
- Nominal voltage
- 30 V AC/DC
Show additional verified specifications
- Nominal current
- 4 A
- Insulation resistance
- ≥ 100 MΩ
- Protection ratings
- IP65 / IP67
- Operating temperature
- -25…+90 °C
- Dimensions W x H x L
- 17 x 14.8 x 50.5 mm
- Mating cycles
- ≥ 100
Lifecycle
- Status
- Active
Compatibility and related parts
4-position A-coded M12 plug to M8 socket interface
System: Adapts the documented four-position straight M12 male interface to a straight M8 female interface.
