Telemecanique Sensors

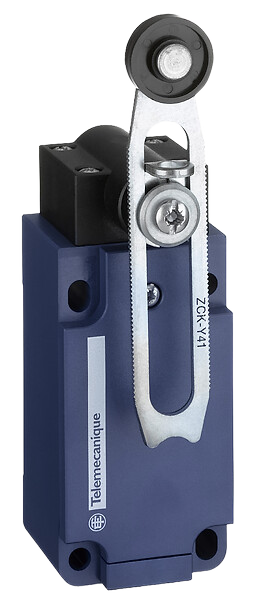

Telemecanique Sensors XCKS141 adjustable roller-lever limit switch
Manufacturer part number: XCKS141ESYS SKU: 2362854
Net unit price, VAT 0%
€0.00
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 1 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
XCKS141 is a fixed-body plastic limit switch with an adjustable thermoplastic roller lever. Its 1 NC + 1 NO snap contacts, positive opening, and IP66/IP67 protection suit machine travel-limit monitoring.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Machine travel-limit detection with an adjustable roller lever
- Replacement of an XCKS limit switch
- Mechanical status monitoring of a conveyor or guard
Key specifications
- Component type
- Limit switch
- Body construction
- Fixed plastic body
- Operator
- Adjustable thermoplastic roller lever
- Approach direction
- Lateral, one or two programmable directions
- Contact configuration
- 1 NC + 1 NO
- Contact action
- Snap action
Show additional verified specifications
- Actuation angle
- 30 °
- Cable entry
- Pg 13.5; cable 9-12 mm
- Terminal conductor capacity
- 1 x 0.34…2 x 1.5 mm²
- Positive opening
- Yes
- Protection ratings
- IP66 / IP67 / IK05
- Utilization categories
- A300 / Q300
Lifecycle
- Status
- Active
Compatibility and related parts
Telemecanique Sensors XCKS limit-switch installations
Product series: Installs as a complete fixed-body XCKS switch with the documented adjustable roller-lever actuation.
