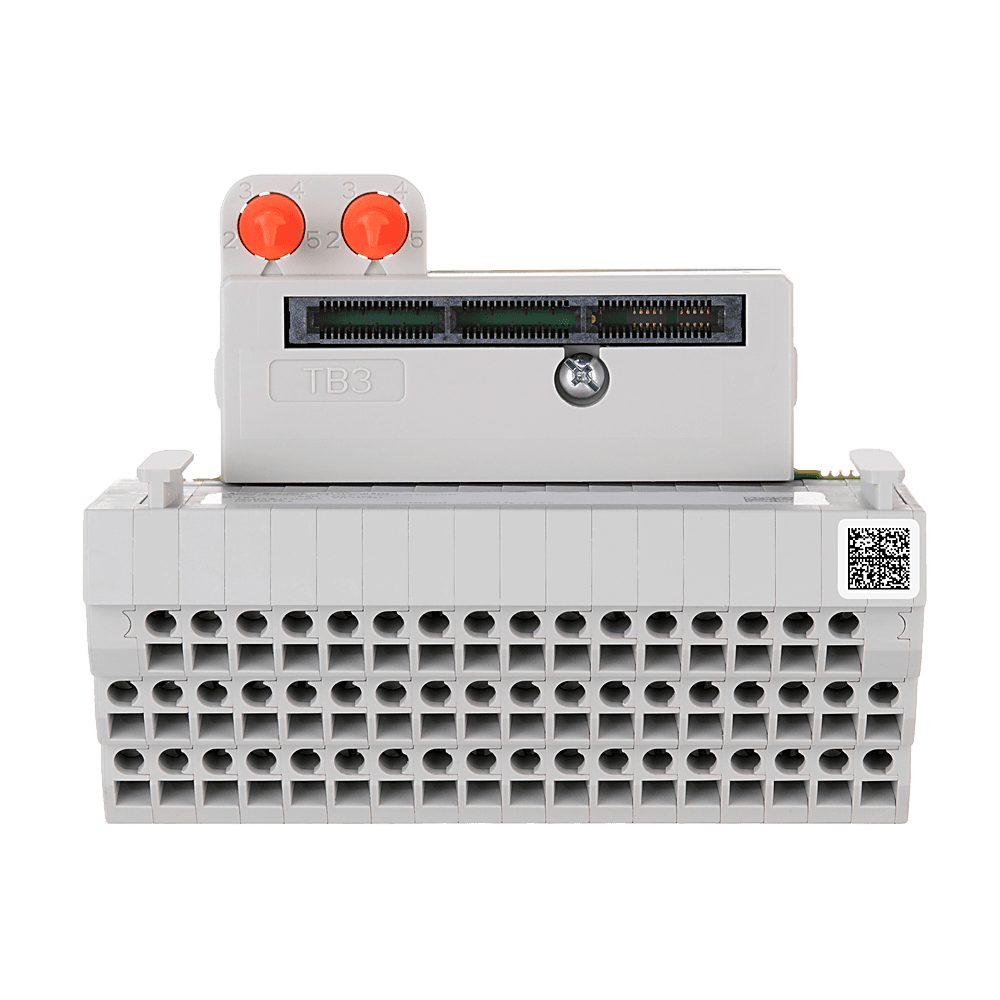

Allen-Bradley (Rockwell Automation)
5094-RTB3S | removable terminal block; termination technology: Spring clamp; input/output rating, maximum: 2 A @ 32 V DC; sensor/actuator power, maximum: 10 A @ 18…32 V DC
Net unit price, VAT 0%
€97.37
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
- Incoming, unallocated stock
- 5 pcs
Informational only. Incoming stock is not included in orderable quantity and no arrival date is promised.
Allen-Bradley (Rockwell Automation) 5094-RTB3S is a removable terminal block. Key selection facts are termination technology: Spring clamp; input/output rating, maximum: 2 A @ 32 V DC; sensor/actuator power, maximum: 10 A @ 18…32 V DC.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Use 5094-RTB3S in control-cabinet field wiring when the design calls for termination technology: Spring clamp.
- Choose 5094-RTB3S for control-cabinet field wiring that must provide input/output rating, maximum: 2 A @ 32 V DC.
- Before ordering 5094-RTB3S, verify sensor/actuator power, maximum: 10 A @ 18…32 V DC against the control-cabinet field wiring design.
Key specifications
- Product type
- removable terminal block
- Input/output rating, maximum
- 2 A @ 32 V DC
- Sensor/actuator power, maximum
- 10 A @ 18…32 V DC
- Wire size
- 0.34…2.5 mm² (22…14 AWG), solid or stranded copper, rated at least 105 °C
- Insulation-stripping length
- 10 ± 1 mm for 0.34…1.3 mm²; 15 ± 1 mm for 2.5 mm² spring terminals
- Operating temperature
- -40…70 °C
Show additional verified specifications
- Enclosure type rating
- None (open-style)
- Product Series
- A
- Terminal block configuration
- 5094 RTB Spring
- Termination technology
- Spring clamp
- Target system
- FLEX 5000
- System family
- 5094,FLEX 5000 Modules
Lifecycle
- Status
- Active
Compatibility and related parts
Allen-Bradley FLEX 5000 system
System: Documented manufacturer system or product-family context; does not imply interchangeability with every member
Official manufacturer documents
- Allen-Bradley (Rockwell Automation) 5094-RTB3S official product evidence (Technical document, en)Opens in a new window
- Official product cutsheet (Datasheet, en)Opens in a new window
- View Guidance (Datasheet, en)Opens in a new window
- FLEX 5000 Terminal Base Assembly Modules Installation Instructions (5094-IN010I-EN-P) (Manual, en)Opens in a new window
