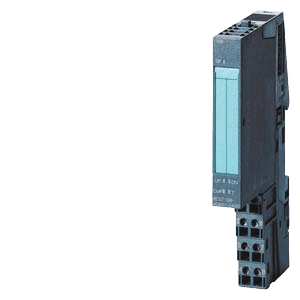

Siemens 6ES7138-4DB03-0AB0 SSI absolute-encoder input module
Manufacturer part number: 6ES7138-4DB03-0AB0ESYS SKU: 6ES7138-4DB03-0AB0
Net unit price, VAT 0%
€259.57
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 4 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens 6ES7138-4DB03-0AB0 SSI absolute-encoder input module. Key selection data: Supply voltage: 24 V DC; Resolution: 25 bit; Width: 15 mm; Height: 81 mm; Depth: 52 mm; Encoder interface: SSI absolute encoder, 25 bit / 1 MHz.
pcs
Information for product selection
Typical applications
- Reading position values from an SSI absolute encoder
- Synchronized positioning measurement with comparison values
- Replacement in an existing Siemens assembly when article number 6ES7138-4DB03-0AB0 matches
Key specifications
- Encoder interface
- SSI absolute encoder, 25 bit / 1 MHz
- Functional capabilities
- comparison value; clock synchronization
- Supply voltage
- 24 V DC
- Resolution
- 25 bit
- Number of digital inputs
- 1
- Width
- 15 mm
Show additional verified specifications
- Maximum sensor-supply current
- 500 mA
- Height
- 81 mm
- Depth
- 52 mm
Lifecycle
- Status
- Mature
Compatibility and related parts
6ES7138-4DB03-0AB0
Replacement: Replacement is allowed only when the target article number is exactly 6ES7138-4DB03-0AB0; this does not establish interchangeability with any other Siemens article.
