Accuenergy

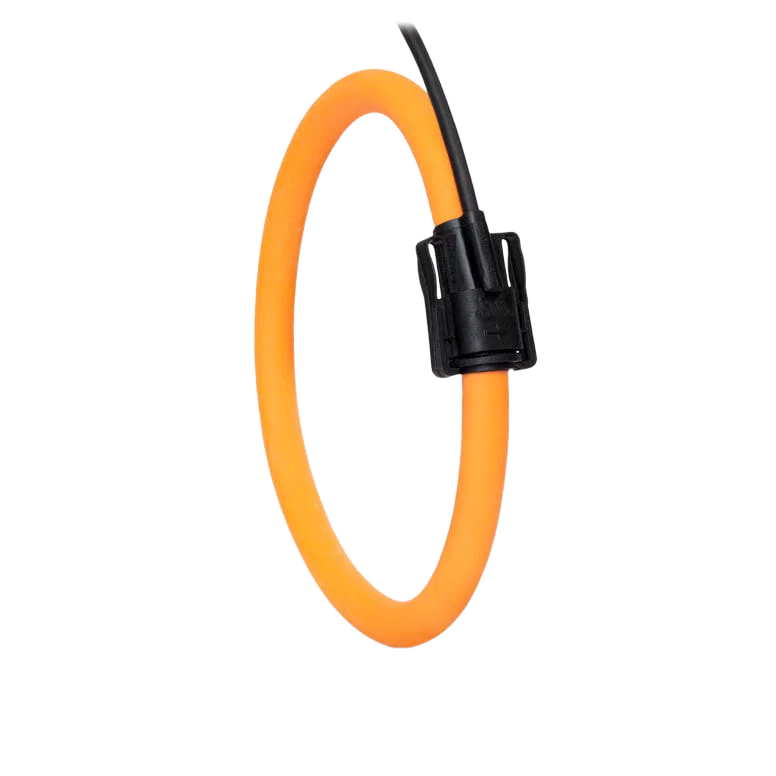

Accuenergy RCT24-2500-10M 24-inch flexible Rogowski current transformer
Manufacturer part number: RCT24-2500-10MESYS SKU: RCT24-2500-10M
No price
Current availability
Current available stock: 63 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 20 Sept 2026, 15:40
Accuenergy RCT24-2500-10M is the exact 24-inch flexible Rogowski current transformer for measuring high AC currents around a large conductor or busbar. Key values: Coil circumference: 24 in; Window diameter: 7.01 in; Current range: 12.5-3000 A; Lead length: 10 m; Accuracy: ±0.5 %.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
pcs
Information for product selection
Typical applications
- Exact-order-code replacement in equipment used for measuring high AC currents around a large conductor or busbar
- New installation specified for exact order code Accuenergy RCT24-2500-10M
- Maintenance stock for installed Accuenergy RCT24-2500-10M units
Key specifications
- Coil circumference
- 24 in
- Window diameter
- 7.01 in
- Current range
- 12.5-3000 A
- Lead length
- 10 m
- Accuracy
- ±0.5 %
- Nominal frequency range
- 45-65 Hz
Show additional verified specifications
- Frequency response
- 10-20000 Hz
- Output at 50 Hz
- 40 mV / 1000 A
- Output at 60 Hz
- 48 mV / 1000 A
- Operating temperature
- -20 to +70 °C
- Mounting
- Free-hanging flexible coil
Lifecycle
- Status
- Active
Compatibility and related parts
Current range: 12.5-3000 A
System: Electrical compatibility - Current range: 12.5-3000 A
