Siemens

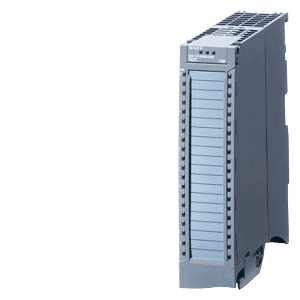

Siemens SIMATIC S7-1500 6ES7532-5HD00-0AB0 analog output module
Net unit price, VAT 0%
€599.26
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens SIMATIC S7-1500 6ES7532-5HD00-0AB0 analog output module. Key selection data: Number of analog outputs: 4; Supported output signal ranges: 0 ... 10 V, 0 ... 20 mA, 1 V ... 5 V, -10 V ... +10 V; Maximum resolution: 16 bit; Minimum cycle time: 3.2 ms, independent of number of activated channels.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Sending analog control signals to field devices
- Controlling valves and actuators from distributed I/O
- Replacement in an existing Siemens assembly when article number 6ES7532-5HD00-0AB0 matches
Key specifications
- Number of analog outputs
- 4
- Supported output signal ranges
- 0 ... 10 V, 0 ... 20 mA, 1 V ... 5 V, -10 V ... +10 V
- Maximum resolution
- 16 bit
- Minimum cycle time
- 3.2 ms; independent of number of activated channels
- Supply voltage
- 24 V DC
- Conversion time per channel
- 0.5 ms
Show additional verified specifications
- Width
- 35 mm
- Number of channels
- 4
- Height
- 147 mm
- Depth
- 129 mm
Lifecycle
- Status
- Active
Compatibility and related parts
6ES7532-5HD00-0AB0
Replacement: Replacement is allowed only when the target article number is exactly 6ES7532-5HD00-0AB0; this does not establish interchangeability with any other Siemens article.
