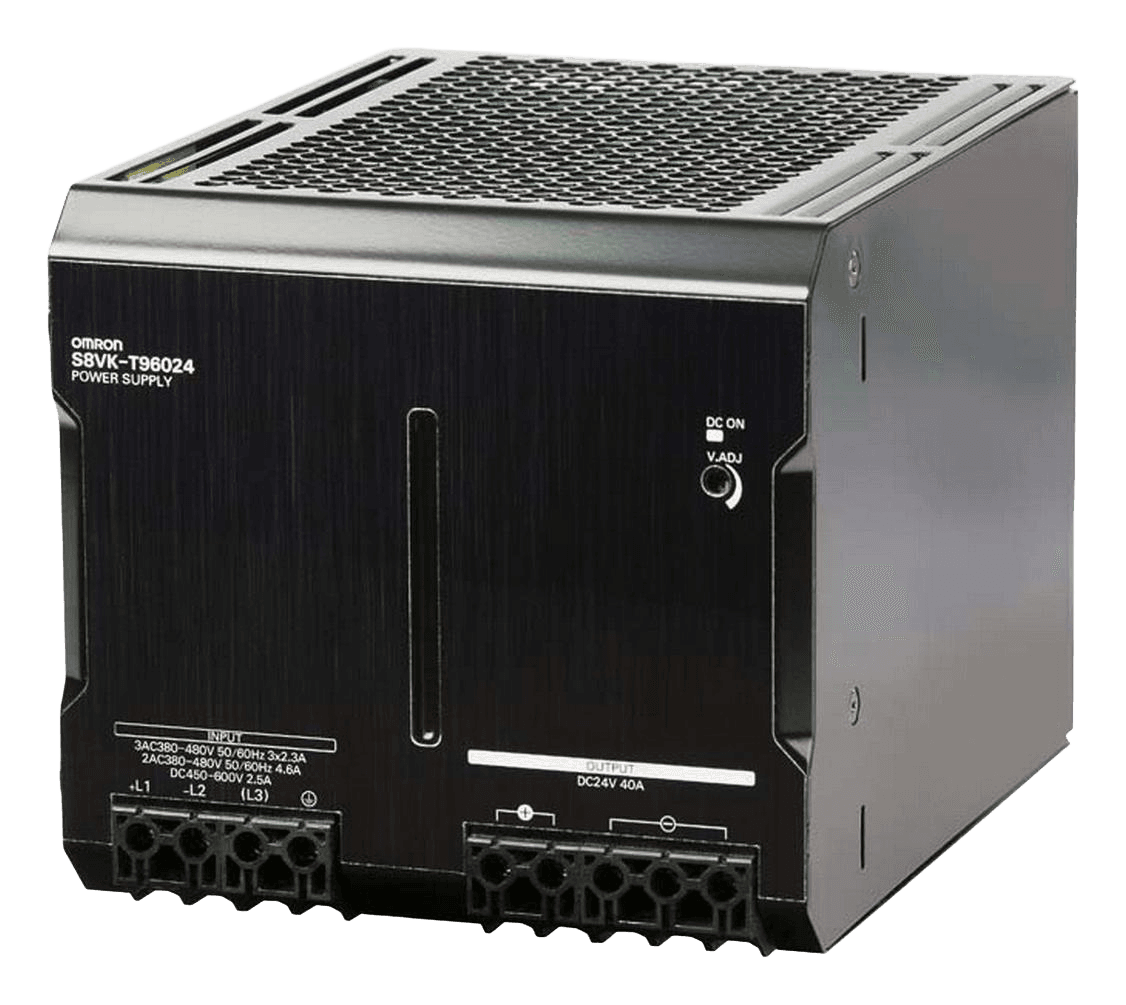

OMRON S8VK-T96024 960 W 24 V DC power supply
Manufacturer part number: S8VK-T96024ESYS SKU: 386430
Net unit price, VAT 0%
€367.83
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 09:25
S8VK-T96024 is a 960 W DIN-rail power supply for 400 V-class two- or three-phase input. Its rated output is 24 V DC / 40 A with 48 A boost current; no DC input is published for this model.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Generating 24 V DC control power for a large 960 W load.
- A 400 V-class two- or three-phase power-supply installation.
- Front mounting with S82Y-VK90F or DIN-rail installation with end plates.
Key specifications
- Power rating
- 960 W
- Rated output voltage
- 24 V DC
- Rated output current
- 40 A
- Maximum boost current
- 48 A
- Three-phase input
- 380...480 V AC; allowable 320...576 V
- Two-phase input
- 380...480 V AC; allowable 340...576 V
Show additional verified specifications
- DC input applicability
- not published for this model
- Efficiency
- 93% typical at three-phase 400 V AC
- Output voltage adjustment
- 24...29.5 V
- Degree of protection
- IP20
- Operating temperature
- -40...70 °C
Lifecycle
- Status
- Active
Compatibility and related parts
S82Y-VK90F front-mounting bracket
Accessory: S82Y-VK90F is the published front-mounting bracket for the 960 W model. Two-phase use is limited to the manufacturer's stated conditions, and DC input must not be assumed for this model.
