OMRON

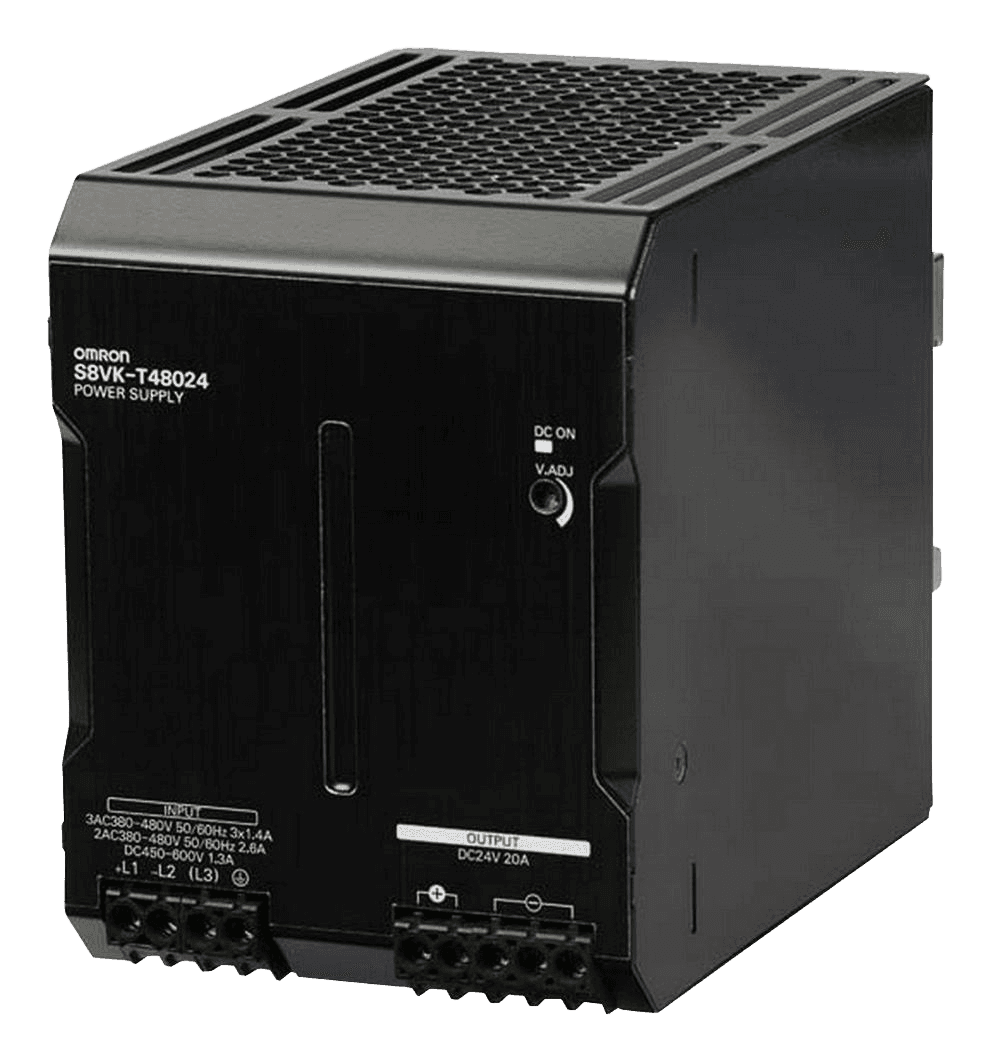

OMRON S8VK-T48024 480 W 24 V DC power supply
Manufacturer part number: S8VK-T48024ESYS SKU: 386429
Net unit price, VAT 0%
€237.18
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 0 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
S8VK-T48024 is a 480 W DIN-rail power supply for 400 V-class two- or three-phase input and the published DC input range. Its rated output is 24 V DC / 20 A with 24 A boost current.
Direct ordering is unavailable for this item.
Send the part number and quantity to ESYS for availability or compatibility confirmation.
Information for product selection
Typical applications
- Generating 24 V DC control power from a 400 V-class multiphase supply.
- A 480 W load that can use the published 24 A boost current.
- DIN-rail or front mounting with the published OMRON brackets.
Key specifications
- Power rating
- 480 W
- Rated output voltage
- 24 V DC
- Rated output current
- 20 A
- Maximum boost current
- 24 A
- Three-phase input
- 380...480 V AC; allowable 320...576 V
- Two-phase input
- 380...480 V AC; allowable 340...576 V
Show additional verified specifications
- DC input
- 450...600 V DC; allowable 450...810 V
- Efficiency
- 93% typical at three-phase 400 V AC
- Output voltage adjustment
- 24...29.5 V
- Degree of protection
- IP20
- Operating temperature
- -40...70 °C
Lifecycle
- Status
- Active
Compatibility and related parts
S82Y-VK10F or S82Y-VK90F front-mounting bracket
Accessory: The 480 W model lists S82Y-VK10F and S82Y-VK90F front brackets; marine installation requires S82Y-VK90F. This does not make it electrically interchangeable with 100...240 V single-phase supplies.
