Beckhoff Automation GmbH & Co. KG

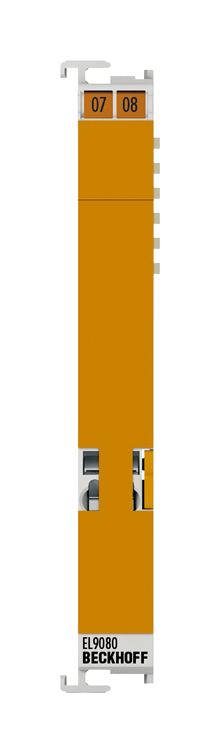

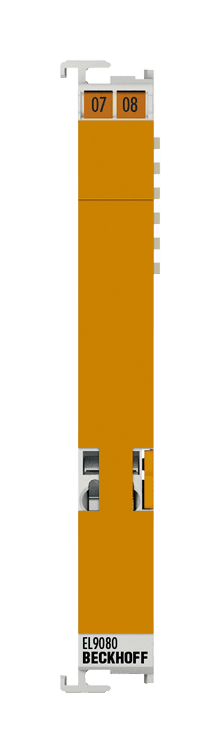

EL9080 | potential-separation terminal; technology: separation terminal; network protocol: EtherCAT; documented voltage: 230 V AC
Manufacturer part number: EL9080ESYS SKU: EL9080
Net unit price, VAT 0%
€17.46
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 68 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Beckhoff Automation GmbH & Co. KG EL9080 is a potential-separation terminal. Key selection facts are technology: separation terminal; network protocol: EtherCAT; documented voltage: 230 V AC.
pcs
Information for product selection
Typical applications
- Use EL9080 in the documented equipment configuration when the design calls for technology: separation terminal.
- Choose EL9080 for the documented equipment configuration that must provide network protocol: EtherCAT.
- Before ordering EL9080, verify documented voltage: 230 V AC against the the documented equipment configuration design.
Key specifications
- Product type
- potential-separation terminal
- Technology
- separation terminal
- Electrical isolation
- 500 V (E-bus/field potential)
- Bit width in the process image
- 0
- Housing width
- 12 mm
- Side by side mounting on EtherCAT Terminals with power contact
- yes
Show additional verified specifications
- Side by side mounting on EtherCAT Terminals without power contact
- yes
- Special features
- placeholder terminal with E-bus transmission
- Weight
- approx. 50 g
- Network protocol
- EtherCAT
- Operating temperature
- -25…+60 °C
- Documented voltage
- 230 V AC
Lifecycle
- Status
- Active
Compatibility and related parts
EtherCAT Terminal, potential group separation
Product series: Documented manufacturer system or product-family context; does not imply interchangeability with every member
