Siemens

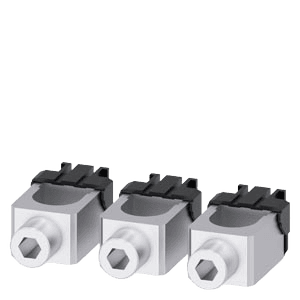

Siemens 3VA9253-0JB12 circuit-breaker circular-conductor terminal
Manufacturer part number: 3VA9253-0JB12ESYS SKU: 3VA9253-0JB12
Net unit price, VAT 0%
€17.99
VAT 25.5% and delivery are shown separately in the request summary.
Current availability
Current available stock: 7 pcs
- Minimum order
- 1 pcs
- Order increment
- 1 pcs
- Availability checked
- 1 Sept 2026, 08:45
Siemens 3VA9253-0JB12 circuit-breaker circular-conductor terminal. Key selection data: Compatible device series: 3VA12; Accessory type: circular conductor terminal; Quantity included in kit: 3; finely-stranded conductor range: 95 - 150 mm²: 22.6 Nm; Terminal designation: TA1.2; Control-wire voltage tap: no.
pcs
Information for product selection
Typical applications
- Equipping a compatible switching or protection device
- Completing device connections in a control cabinet
- Replacement in an existing Siemens assembly when article number 3VA9253-0JB12 matches
Key specifications
- Accessory type
- circular conductor terminal
- Quantity included in kit
- 3
- Compatible device series
- 3VA12
- finely-stranded conductor range
- 95 - 150 mm²: 22.6 Nm
- Terminal designation
- TA1.2
- Control-wire voltage tap
- no
Show additional verified specifications
- Minimum aluminum-conductor size
- 50 mm²
- Minimum copper-conductor size
- 50 mm²
- Maximum aluminum-conductor size
- 185 mm²
- Maximum copper-conductor size
- 185 mm²
- Stripping length
- 20 mm
- Connectable conductor cross-section
- 95 ... 150 mm²: 22.6 Nm
Lifecycle
- Status
- Active
Compatibility and related parts
3VA12
Product series: Compatible device series
